MACHINIST X99 RS9 Motherboard Combo LGA2011-3

£99.00

~~£69.31~~ £99.00

Sale Sold out

Quantity

Get it between –

Return and Refund Policy

We want you to be completely satisfied with your purchase. If you've changed your mind or are not fully happy with your product, you may return it within 30 days of receipt, Provided it is in its original packaging and in a saleable condition.

Our return process is simple and hassle-free. Once we receive and inspect the returned item, we will issue a refund or offer an exchange based on your preference.

For more details on our return and exchange policy, please refer to our FAQs or contact our support team.

Delivery Information

At TechRova we are committed to delivering your order promptly and efficiently. Whilst we give a delivery time of 7-10 working days, you will often receive your order within just 5 days. Our warehouses are located in the UK and orders are processed as soon as possible once payment is made.

Specification

Motherboard model: X99 RS9 Chipset: Q87
CPU Socket: LGA 2011-3
Memory Channels: Quad-channel support
Max Memory: 4× 32GB (128GB total)
Memory Speeds: 2133/2400/2666/3000/3200/3600MHz
Dimensions: 235mm x 200mm. USB interface: 6 USB2.0, 2 USB3.0;
Ethernet: 1 Gigabit network card;
PCIe: 1 PCIe 16x, 2 PCIe 1x;
SATA ports: 6;
Diagnostic card: 1;
M.2 interface: PCIE 3.0 *2, NGFF WIFI.
Weight: ~0.95kg (including packaging)

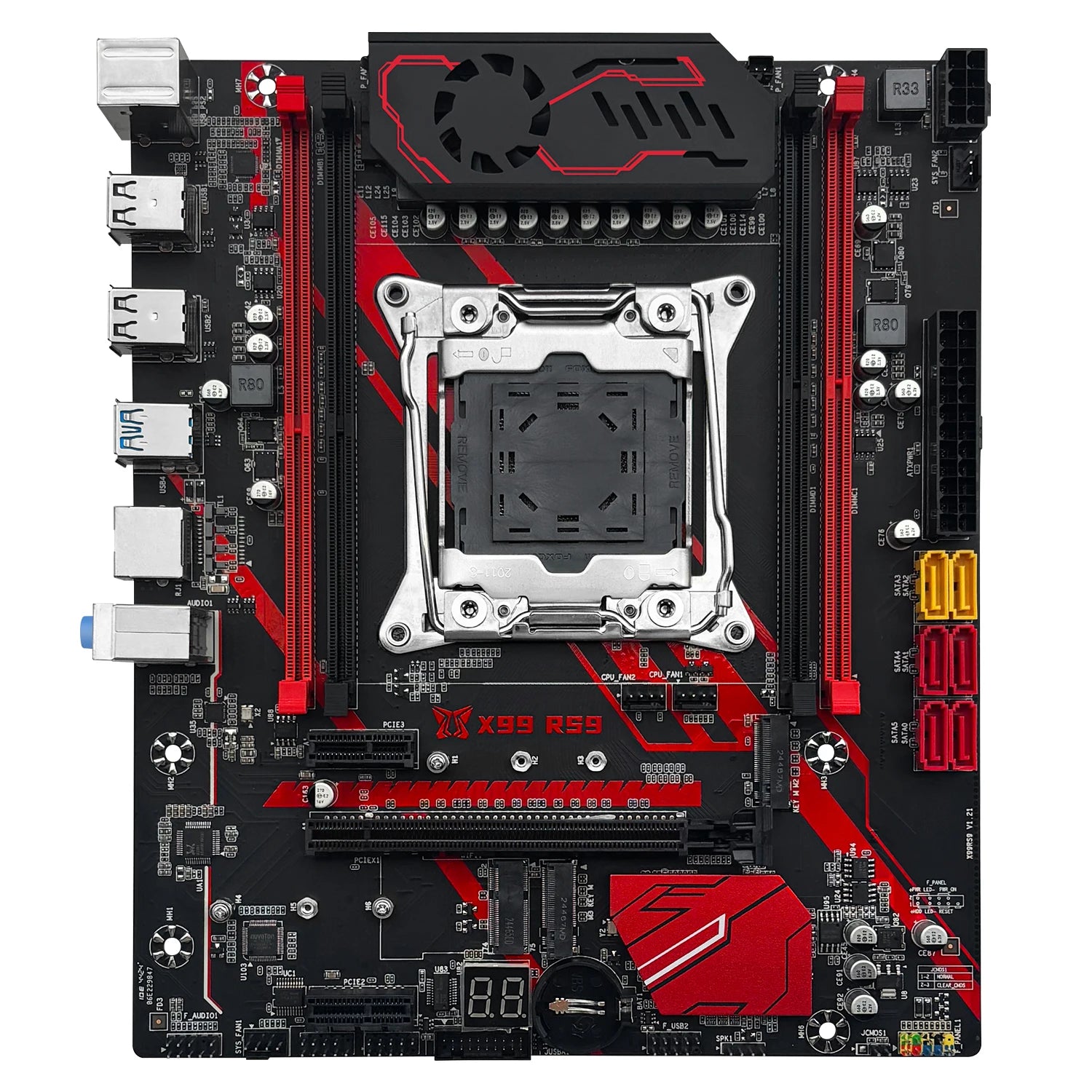

MACHINIST X99 RS9 LGA 2011-3 Motherboard – Built for Power Users, Creators, and Performance Builds

The MACHINIST X99 RS9 is a performance-ready motherboard engineered for users who demand more from their PCs. Featuring support for Intel Xeon E5 v3/v4 processors, quad-channel DDR4 memory, and triple M.2 slots, this Micro-ATX board provides the core components needed for building a powerful workstation, server, or high-efficiency gaming rig.

With its compact form factor and rich I/O options, the X99 RS9 is a versatile platform ideal for both budget builds and professional computing environments. Whether you're editing 4K video, running virtual machines, or assembling a home NAS, this board provides a solid foundation for modern performance computing.

What Makes It Different?

Unlike many budget boards that limit performance or features, the X99 RS9 stands out with:

Support for high-core-count Xeon CPUs (e.g., E5-2640 V4 – 10 cores, 20 threads)

Triple M.2 slot configuration: 2x NVMe SSD support + 1x WiFi module

Support for up to 128GB DDR4 RAM in quad-channel mode

Legacy PCI slots for older cards, paired with modern PCIe 3.0 x16 expansion

Pre-installed WiFi module and gigabit LAN for flexible connectivity

This board strikes a balance between performance and cost-efficiency, especially when paired with affordable Xeon processors and high-speed DDR4 memory.

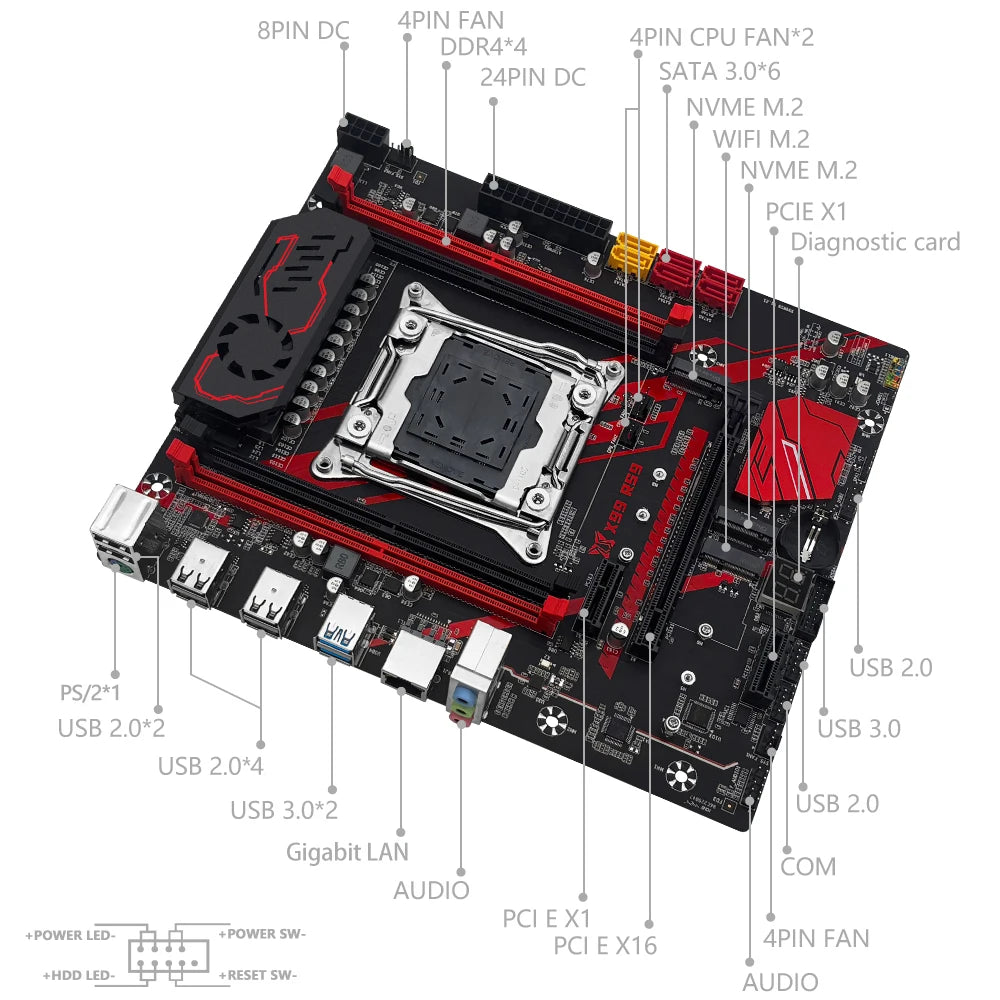

Technical Specifications

Category	Details
CPU Support	LGA 2011-3 Socket – Compatible with Intel Xeon E5-2600 v3/v4 CPUs
Chipset	Q87 / B85 / C226 (depending on production batch)
Memory	Up to 128GB DDR4 (2133–3200 MHz), 4 DIMM slots, quad-channel
Storage	6x SATA 3.0 ports, 3x M.2 slots (2x NVMe SSDs, 1x WiFi card)
Expansion	1x PCIe x16, 2x PCIe x1, 3x legacy PCI slots
Networking	Gigabit LAN + dual-band WiFi (802.11AC)

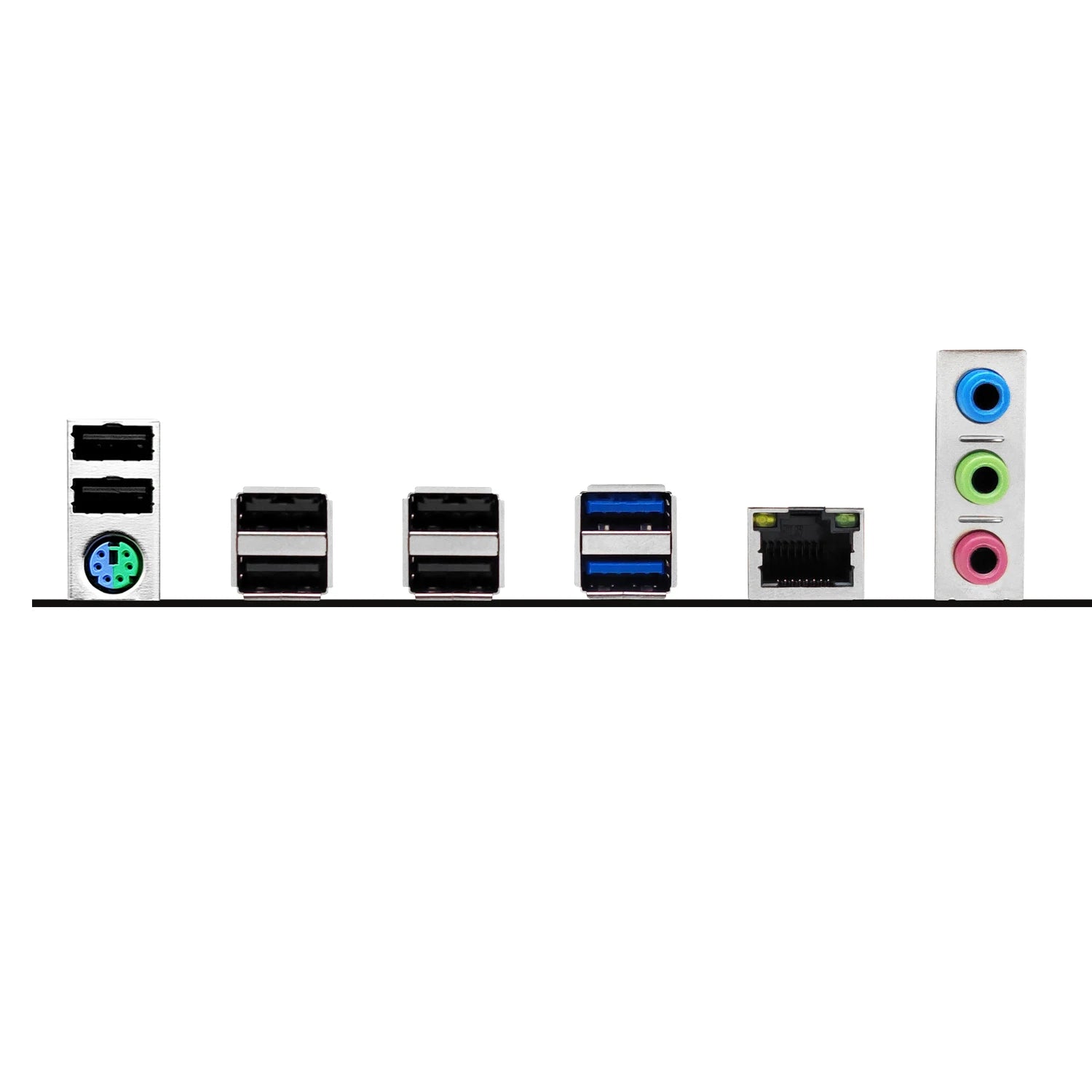

USB Ports	2x USB 3.0, 6x USB 2.0

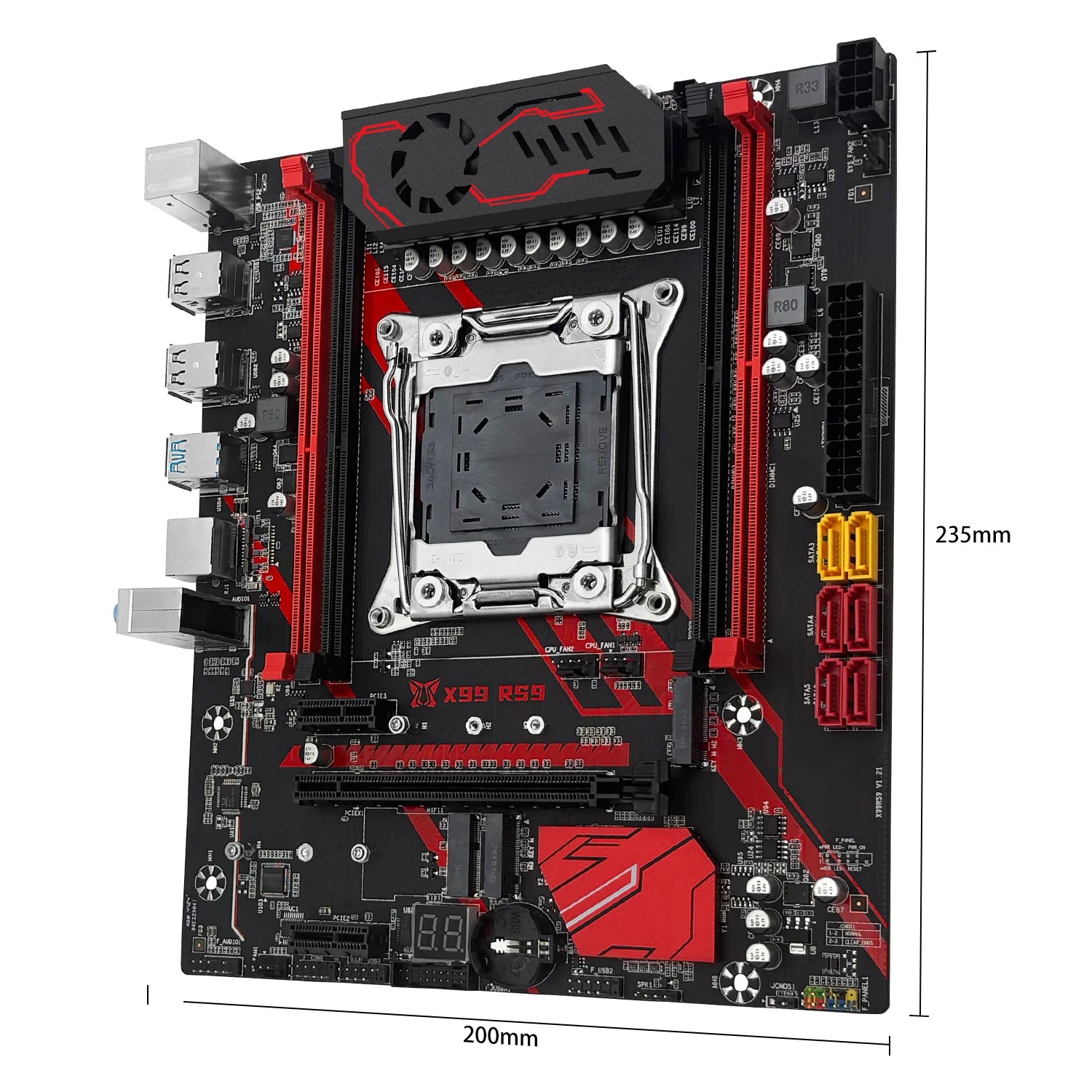

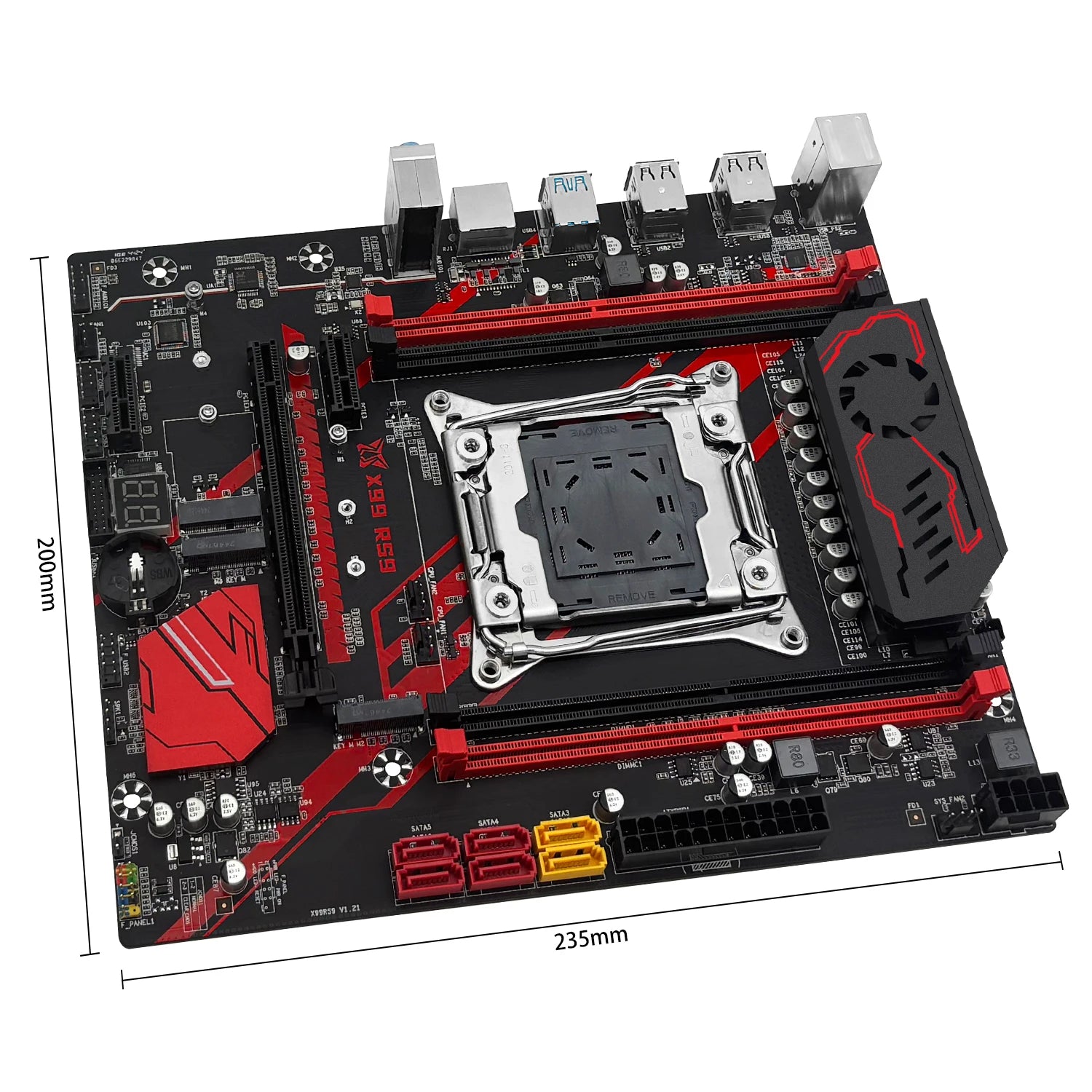

Form Factor	Micro-ATX (235mm x 200mm)
Power Connectors	8-pin + 4-pin CPU power required
PSU Recommendation	Minimum 500W power supply with required connectors

Bundle Options

Choose the option that fits your build needs:

Option 1 – Motherboard Only

Includes the X99 RS9 motherboard. Ideal for users with their own compatible CPU and RAM.

Option 2 – Motherboard + CPU

Includes the X99 RS9 and an Intel Xeon E5 2640 V4 processor (10 cores, 20 threads). Great value for CPU-intensive tasks.

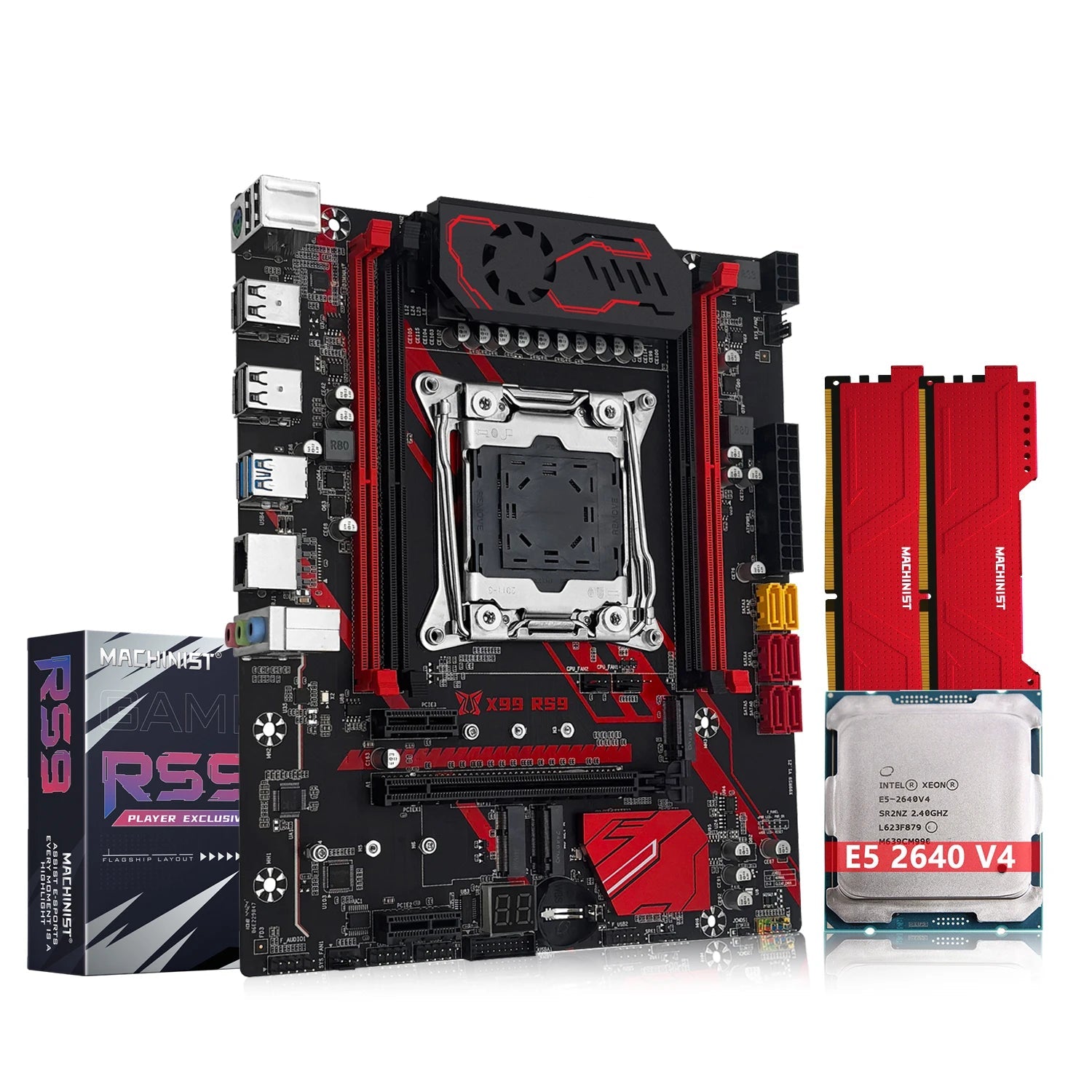

Option 3 – Full Combo (Best Value)

Includes:

MACHINIST X99 RS9 motherboard

Intel Xeon E5 2640 V4 CPU

16GB DDR4 RAM (2x8GB @ 2666MHz with heatsinks)

Bonus accessories: I/O shield, SATA cable, heatsink bracket
All components are tested and pre-matched for compatibility.

Best For

Gaming PC Builds – Pair with modern GPUs like RTX 3060 or RX 6600 for excellent 1080p/1440p performance.

Content Creation – Handle large video projects, Photoshop layers, or 3D rendering thanks to Xeon's multi-core advantage.

Office Workstations – Run multitasking environments or server-style setups reliably and cost-effectively.

NAS/Home Server – With 6 SATA ports and triple M.2, it's perfect for large storage arrays or virtualization.

Setup & Compatibility Notes

Use reputable DDR4 RAM brands like Kingston, Samsung, or Crucial for best performance and compatibility.

BIOS battery is not included due to shipping regulations (CR2032 standard coin battery required).

Motherboard chipset and color may vary slightly depending on batch, but all variants maintain core functionality.

Ensure your power supply is 500W or higher and includes both 8-pin and 4-pin CPU power connectors.

What's in the Box (Combo Orders)

MACHINIST X99 RS9 Motherboard

Intel Xeon E5 2640 V4 Processor

2x 8GB DDR4 RAM (2666MHz, with heatsinks)

I/O Shield

SATA Data Cable

Heatsink Bracket

Protective Packaging + Basic Setup Guide

Frequently Asked Questions

Q: Can I use this motherboard for gaming?
Yes. With a compatible GPU, the board performs well for mainstream gaming at 1080p or 1440p.

Q: Does it support overclocking?
Overclocking is limited due to the nature of Xeon CPUs and chipset design. This board prioritizes stability over aggressive tuning.

Q: Is ECC RAM supported?
Some ECC modules may function, but ECC features are not guaranteed. Non-ECC unbuffered DDR4 is recommended for best results.

Q: Can I install Windows 11 on this board?
Yes, with proper BIOS settings and drivers, Windows 10 and 11 are supported. TPM 2.0 is not required for local installs.
